The future of sustainable energy won't be secured merely by discovering entirely new power sources. Setting aside the search for brand new power sources, the genuine challenge is simply squeezing the maximum possible wattage from the energy reserves currently at our disposal.
Here is the unexpected kicker: a straightforward invention from the 1800s—first conceived for lighthouses to warn ships away from rocky shores—has now taken centre stage in this modern task. That piece of elegant engineering, the Fresnel lens, is, fundamentally, the reason certain solar setups manage to hit the highest efficiency ratings globally.
Most people haven't even heard the name, yet understanding what is a Fresnel lens is instantly explains why some solar technologies achieve efficiencies that seem utterly impossible using standard panels. The solar Fresnel lens is not some clever optical gimmick. It is reshaping the economics of power generation at scale.
Lighthouse engineers in the early 1800s wrestled with a nasty problem. Powerful lenses needed serious thickness and aggressive curvature to throw light across vast ocean distances. This spawned cascading nightmares. Glass in those quantities bankrupted budgets completely. The weight meant reinforcing entire lighthouse structures from the foundation up.
The worst part of all was that light actually weakened when travelling through all that dense material. A lighthouse lens absorbing its own light made zero sense. Imagine hauling a lens the size of a kitchen table up a lighthouse spiral staircase.
Except it weighs what three adults weigh combined and costs more than constructing a decent-sized house. That was normal until Augustin-Jean Fresnel, a French engineer, started questioning basic assumptions around 1822.
Fresnel noticed something blindingly obvious once you see it. Lenses bend light at their surfaces, nowhere else. That thick middle section was completely pointless for optics. Traditional designs needed it structurally, but it contributed absolutely nothing to light manipulation.
So, he carved away everything unnecessary. Using mathematics, he sliced a conventional lens into razor-thin concentric rings. Each ring maintained its exact surface angle for proper focusing, but the dead weight between rings disappeared entirely. Stack these stepped rings flat, and you have replicated a massive lens's performance whilst ditching roughly 90% of the material.
If you picture a circular staircase viewed from directly above, that gives you the basic geometry of a Fresnel lens. The structure is thin, significantly lighter, and remarkably cheaper to fabricate. This ingenious principle—shedding mass while maintaining optical power—is the core concept that drives every efficient Fresnel lens solar panel system installed today.

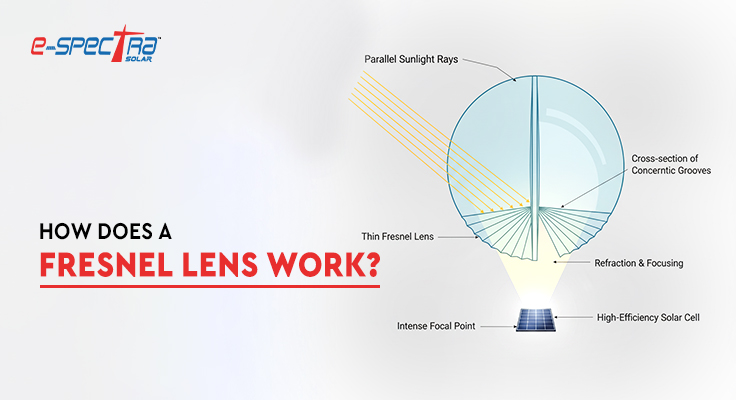

The underlying physics remains accessible even though the precision gets extreme. How does a Fresnel lens work? Sunlight strikes each ring's angled surface and bends (refracts). You have witnessed refraction countless times—that bent appearance of a straw in water. Light changes direction moving between materials, and optical engineers exploit this behaviour ruthlessly.
Each stepped section in a solar Fresnel lens behaves like a miniature prism. Parallel sunlight rays strike these surfaces at calculated angles, bending inward toward a common point. The engineering ensures every ray converges at one focal spot. Sunlight scattered across square metres gets compressed into a spot smaller than your fingertip, burning with concentrated intensity.
Think of focusing sunlight through a magnifying glass, except multiply the precision several hundred times over. The Fresnel lens working principle takes dispersed solar energy and 'weaponises' it, and that concentration unlocks remarkable efficiency gains.
Types of Fresnel lens configurations vary depending on whether you want light converged or dispersed.
Grasping these distinctions clarifies why certain configurations excel at solar concentration, whilst others serve completely different industries.
Standard silicon photovoltaic panels have become absurdly affordable over the past decade, with prices having crashed. But efficiency tops out around 22 to 24% in real-world installations. Physics sets hard limits on how much energy single-junction silicon cells can extract from sunlight.
Multi-junction cells, constructed from exotic semiconductor materials, smash through these barriers completely. They regularly hit efficiencies above 40%, sometimes exceeding 47% in laboratory settings. The catch is the cost, which is prohibitive for covering large areas.
The Fresnel lens solar panel approach flips conventional thinking completely. Rather than spreading expensive cells across large areas, you reverse the entire equation.
Now you are using perhaps 10% of the expensive semiconductor material whilst maintaining peak efficiency. The lens costs pennies compared to the cell material you have just eliminated. This single insight powers the entire Concentrated Photovoltaics (CPV) sector. Recent CPV installations consistently demonstrate system efficiencies above 30%, with experimental setups pushing past 35%.
The primary Fresnel lens uses in sustainable energy are split between generating direct electricity and generating heat for storage.
In CPV, the point focus solar Fresnel lens concentrates light onto highly efficient, but tiny and expensive, multi-junction cells. This is a direct electrical generation method. The main Fresnel lens advantages here are the extreme concentration ratios (500x to 1000x), making the high cost of the cell material economically viable. This represents a substantial improvement over standard panels in regions blessed with intense, direct sunlight.
Solar Fresnel lens technology also enables a fundamentally different solar strategy. Rather than generating electricity directly through photovoltaics, Concentrated Solar Power (CSP) installations use focused sunlight to generate tremendous heat first.

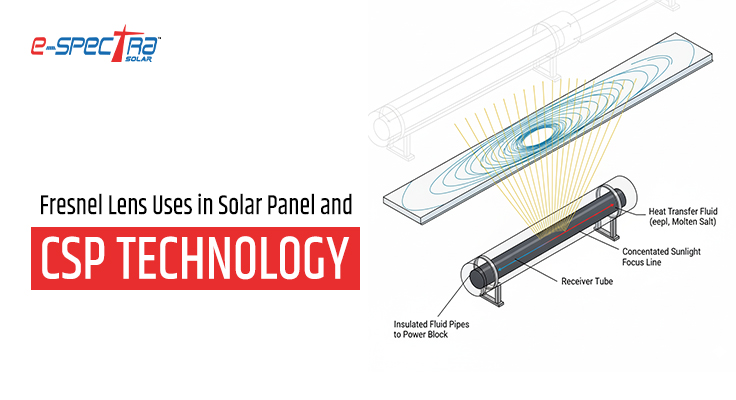

Linear Fresnel collectors deploy long rows of lenses focusing sunlight onto receiver tubes containing heat transfer fluid (usually molten salt). Concentrated sunlight heats this fluid well beyond 400°C. That thermal energy then produces steam, driving turbines through completely conventional generation methods.
The advantage that changes everything is storage capability. Molten salt holds heat extraordinarily well for extended periods. CSP facilities can store thermal energy in massive insulated tanks and generate electricity hours past sunset. This solves solar's most frustrating limitation—intermittency—and transforms solar from an unreliable resource into dispatchable baseload power matching coal or gas plants.
Concentrated solar demands highly specific conditions. Unlike standard panels that generate power even during overcast days, CPV systems require Direct Normal Irradiance (DNI)—sunlight travelling in parallel rays directly to the lens. Diffuse light from clouds or atmospheric haze simply will not concentrate effectively enough.
This restricts viable deployment to regions with reliably clear skies most days. Deserts and arid climates, such as the Southwestern United States, the Middle East, North Africa, and portions of Australia, provide ideal conditions year-round. Installing CPV in frequently cloudy climates wastes capital and produces disappointing returns.
Tracking creates another significant hurdle. CPV systems need dual-axis tracking, following the sun's path across the sky with extraordinary precision throughout each day. Misalignment by even a single degree causes concentrated light to miss the small solar cell completely, and efficiency collapses to nearly zero instantly.
The extreme concentration also generates absolutely ferocious heat at the focal point. Multi-junction cells sitting there reach temperatures that would destroy them within minutes without aggressive active cooling. This adds complexity, ongoing maintenance demands, and operational costs.
Pick whichever technology you want, but here is the thing: Solar installations will not just run themselves for three decades without attention. Dust builds up, the weather beats down, and components gradually wear out. All of this chips away at how much power you are actually getting. The performance difference between well-maintained and neglected systems can easily reach 20 to 25% of potential generation.
For concentrated systems with their demanding optical precision and active cooling requirements, maintenance becomes even more critical to longevity. But standard photovoltaic arrays also benefit tremendously from regular professional attention.
For any owner, maintaining a system demands rigorous diligence. This includes more than just routine wipes: cleaning panels properly, methodically verifying electrical connections, constantly monitoring the inverter performance, and, crucially, catching small issues before they cascade into expensive failures.
These meticulous steps are the backbone that ensures long-term system profitability and robust returns. For the most excellent, actionable instructions on keeping your generation smooth, we strongly recommend you consult our comprehensive guide on solar panel maintenance tips.
Property owners face real choices about solar panel maintenance services and how to structure them. Some strongly prefer comprehensive annual inspections, catching everything at once. Others opt for monthly plans where someone is keeping an eye on things regularly. Both ways work, honestly. If you are trying to figure out which makes more sense, checking out comparisons between Annual vs. Monthly Solar Maintenance Plan. option could help you decide.
The solar industry has matured dramatically over the past 15 years, shifting from speculative concept to essential infrastructure. To navigate this rapid evolution, one requires far more than surface knowledge. Comprehending the fundamental mechanics behind innovations like Fresnel lens concentration—and critically assessing their actual impact on performance—is the definitive method for separating fleeting pure marketing noise and hype from true, verifiable technical advances.
For property owners evaluating solar adoption seriously, fundamentals matter far more than cutting-edge technology claims. Will the proposed system actually generate the power promised under local conditions? What is the realistic solar system for home price after considering local weather patterns, shading issues, and available government incentives? Which installer has demonstrated expertise and a track record of consistently delivering quality work?
These practical questions deserve thorough, honest answers before signing any contracts or commitments. For any prospective owner, choosing the best solar panel company in India or anywhere on the global market, frankly, must transcend mere calculation of the lowest initial solar system for home or acceptance of boastful advertising.
The ultimate criterion rests on a contractor's tangible integrity: this means their proven capability in designing appropriate systems for specific sites, their surgical competence in executing installations professionally, and, critically, their long-term operational pledge to standing behind the work with genuinely responsive service over decades.
Spectra Solar Power approaches every project with exactly that perspective, carefully balancing technical innovation with practical implementation realities. Systems properly designed, professionally installed, and consistently maintained provide reliable, clean energy and solid financial returns over their full lifespan.
