When discussing the sun’s energy, most of us picture satellites or vast electrical power fields. But there is a silent, formidable powerhouse in clean technology: the solar furnace. It doesn't generate watts; instead, it takes the sun’s diffused light and compresses it into a concentrated, pure heat capable of melting refractory metals and revolutionising heavy industry.

At Spectra Solar Power, our expertise is focused on reliable home power, from installing a new solar panel for residential property to providing expert solar panel maintenance services. We champion the everyday utility of solar. However, the solar furnace represents the extreme potential of this energy, demonstrating clean power's ability to satisfy the world's highest thermal requirements.

To grasp the full measure of this engineering feat, we need to begin at the beginning. We will clearly explain what is a solar furnace. Next, we will follow the path of the focused energy to show precisely how a solar furnace works. We will then scrutinise the specific mirror used in solar furnace systems, before concluding with an overview of the different types of solar furnaces currently driving global research.

What is a Solar Furnace? A Concept of Pure Heat

A solar furnace essentially works as a high-temperature machine that uses the sun's energy. The technique involves collecting the sun's radiation over an extremely vast surface and then directing all of that gathered light onto one minute target zone.

While this is simply basic optics, the sheer size of the operation is what matters: concentrating the light sharply increases the energy density at the focal point, resulting in heat that is several magnitudes greater than the surrounding atmosphere.

It's vital to note how this device operates. The solar furnace relies on thermal physics, unlike the typical rooftop solar panel that creates an electric current. Instead, the furnace delivers pure heat. Since the energy comes directly from light, it bypasses the combustion stage entirely, meaning it produces zero harmful exhaust like carbon dioxide, ash, or sulphur.

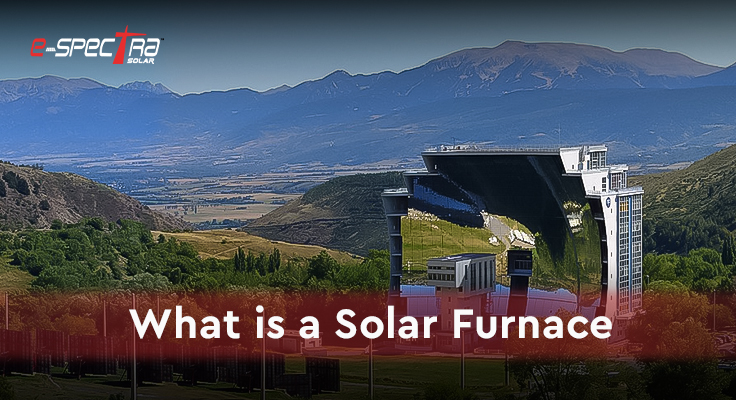

The temperatures achieved are staggering. The renowned facility at Odeillo in the French Pyrenees, a key site for this technology, can push the temperature at its focal point past 3,500°C. To give that number meaning, consider that this heat is well over twice the melting point of common steel, which is around 1,500°C. The solar furnace is fundamentally a tool of immense, controllable thermal power, offering a pathway to decarbonise some of the world's most energy-intensive manufacturing processes.

The Mechanics of Light and Fire: How Does a Solar Furnace Work?

The operation of a solar furnace is an integrated mechanical and optical process that efficiently manages the sun’s movement and light. It relies on a carefully orchestrated system of reflection and concentration.

The Three Pillars of Operation

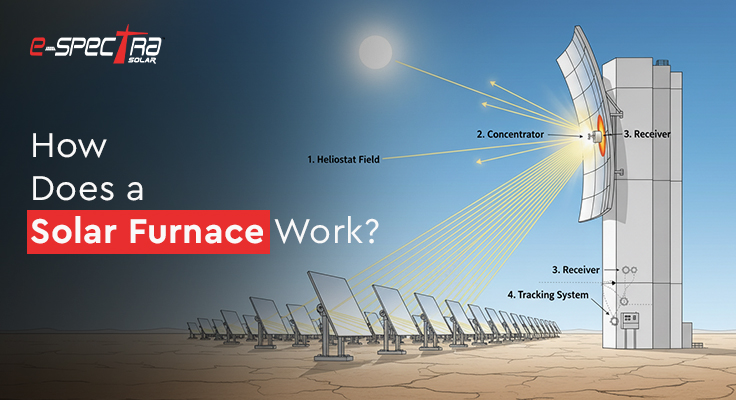

A major solar furnace is constructed using three primary, interconnected components:

1. The Heliostat Field (The Collector): These are not static reflectors. Heliostats are large, flat mirrors, each independently mounted on a computer-controlled tracking system. Their sole, continuous job is to follow the sun across the sky. As they track the sun, they collect the sunlight and redirect their reflection towards a single, stationary target. This field covers a vast area, ensuring maximum light capture.

2. The Concentrator (The Primary Reflector): This is the imposing, fixed structure that defines the furnace's appearance. It is a massive concave mirror, often resembling a parabolic dish cut in half. The light beams reflected from the entire heliostat field converge onto this structure. The concentrator's purpose is to take the many parallel light beams it receives and funnel them precisely onto one tiny, specific spot in front of it.

3. The Focal Point/Receiver (The Furnace Chamber): This small, dedicated zone is where the concentrated light meets its endpoint. The energy gathered from hundreds of square metres of mirrors is condensed onto a receiver that might be only the size of a cooking pot. It is here that the energy transforms into scorching heat, which is then absorbed by the material being processed or by a heat transfer medium for later use.

The Operational Flow

The solar furnace follows a repeatable, efficient cycle:

• Gathering: The widespread heliostats capture sunlight over the entire available land area.
• Targeting: The automated tracking system ensures the heliostats continuously redirect all captured light towards the stationary concentrator.
• Focusing: The massive concave concentrator mirror takes the light and brings it to an intense, single focus point, multiplying the original solar flux hundreds or thousands of times.
• Use: This pure, concentrated heat is then used for various applications, from generating steam for large-scale power, like a modern on-grid solar system plant, to directly heating materials for industrial processes.

The location itself is absolutely vital. To ensure maximum efficiency, any facility must be built where the sun is strongest and the skies are clear, which is why operators seek out places that receive about 300 days of bright sunshine a year.

Precision Optics: The Mirror Used in Solar Furnace Design

The operational performance of any solar furnace hinges on the quality and design of its mirrors. Optical accuracy is not merely a bonus; it is the fundamental requirement for reaching those extreme temperatures.

The main piece of the system, the primary concentrator, is always a concave mirror. Its inward-curving shape makes it perfect for converging light. When parallel rays of sunlight strike this concave surface, they are instantly reflected inward, gathering at a single point called the focal point.

To achieve the absolute highest concentration ratios, the mirror must be manufactured with a perfect parabolic geometry. The mathematics of a parabola guarantees that every incoming ray parallel to its axis is reflected precisely onto the same focal point. Even tiny defects in this curve would scatter the light, causing a massive drop in energy density and making peak temperatures impossible.

Material Demands for Extreme Reflection

The mirror surface's ability to reflect light is just as important as its curve.

• High Reflectivity: The mirror must return the greatest amount of incoming sunlight possible; this means its surface must achieve a reflectivity of 90% or better. Any energy that isn't reflected is simply energy lost, which can never be turned into the final intense heat.
• Durability: The reflective surface itself is typically created using an extremely polished layer of silver or aluminium, which is then sealed and protected by a robust glass backing. This combination gives the mirror both excellent specularity (a perfect mirror finish) and the sheer toughness required to survive decades of weather and environmental wear.

In tower-based systems, while the central concentrator handles the final convergence, the heliostat mirrors are what deliver the initial parallel beams. Their flat or slightly curved surfaces are essential for accurately reflecting light from the sun, which is always moving, onto the fixed structure of the concentrator.

Exploring Scale and Function: Different Types of Solar Furnaces

Every solar furnace design is a direct trade-off between temperature and scale. The physical layout tells you immediately what job the facility is meant to do.

• Central Tower Furnace (The Record Setter): This is the gold standard for pure temperature. It uses a vast array of ground-based mirrors, heliostats, which all direct light onto one large, stationary concentrator located high up on a tower. That final mirror focuses the energy down into a small receiver. The system easily hits the extreme high range, from C up to C. Applications are limited to high-science research: melting refractory ceramics, thermal testing for spacecraft, and advanced chemistry.
• Dish/Parabolic Reflector (The Flexible Specialist): This is a single, self-contained unit. A large parabolic dish, usually segmented, tracks the sun, focusing the energy right onto the receiver mounted at the centre of the dish itself. It’s highly efficient at generating localised heat, generally C to C. This is often favoured for modular power units or supplying intense heat for specific, remote industrial tasks.
• Parabolic Trough Furnace (The Bulk Heat Supplier): Though structurally different, the trough is basically a linear solar heater used for continuous, large-scale heating. Long U-shaped mirror arrays focus sunlight along a continuous receiver tube. A heat transfer fluid, like molten salt, circulates through that tube to move the energy. It operates in the medium temperature range (C to C). It’s the primary driver for generating steam in large power plants and providing general process heat for factories.

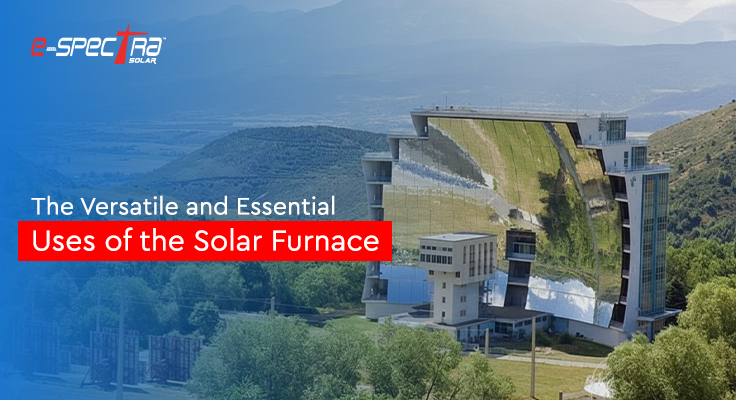

The Versatile and Essential Uses of the Solar Furnace

The solar furnace's highest attribute isn't its scorching temperature, but the combination of its power and its cleanness. This remarkable capability finally frees heavy industry to perform high-demand tasks that were, until now, completely reliant on polluting, carbon-burning fuels.

1. Purity in Production:

This means they never absorb combustion byproducts like sulphur or carbon. Achieving this level of absolute purity is non-negotiable for anyone manufacturing ultra-pure ceramics, special glass compositions, and the elite alloys that are essential components in extremely demanding technological fields, particularly advanced electronics and aerospace engineering.

• The Birth of Nanomaterials: Engineers leverage this capacity for precise temperature control at the end of the scale to forge entirely new substances. For instance, processes involving solar-induced sublimation—where temperatures deliberately hover around 3,000°C, are employed to literally vaporise and then reform matter, producing novel compounds like high-purity zinc compounds and specific carbon nanotubes.

2. Decarbonising Fuel and Manufacturing

This represents the most critical opportunity the technology offers for achieving global sustainability.

• Green Hydrogen: Current research heavily involves using the furnace’s intense heat to power thermochemical reactions. The aim is to cleanly split water or methane, producing hydrogen fuel that is free of carbon byproducts. Developing this storage solution is key to energy independence, running parallel to careful consideration of the off-grid solar system price and battery configuration for commercial setups.
• Clean Industrial Heat: Sectors known for heavy pollution, particularly steel, cement, and glass production, finally have a viable alternative. By delivering a dependable stream of sustainable, clean heat, the solar furnace creates the most direct and practical opportunity to severely reduce the world's industrial output of carbon emissions.

3. Testing in Extreme Conditions

The capacity to generate and precisely control this intense thermal energy means engineers can run vital simulations and conduct tests. Without the solar furnace, these necessary tasks would be either impossible or far too expensive to attempt.

• Thermal Shock Testing: Consider the stress placed on components in a nuclear reactor or the stress a returning spacecraft endures. Materials destined for these high-stress environments must be certified to handle immense heat and rapid, immediate temperature changes. The solar furnace provides the perfect environment to subject these materials to rigorous trials, confirming their durability and guaranteeing long-term safety.
